CLAVICLE PLATE
Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Variable angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Anatomically shaped plate design
- Dynamic compression hole for fracture compression
Fractures
- 6 – 10 holes
- Lengths 74 mm – 124 mm
- Width 12 mm
- Titanium

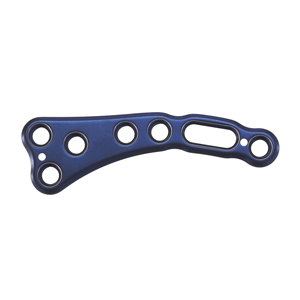

Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 2.7 mm
- Variable angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Elongated hole facilitates alignment of the plate on the bone
- Anatomically adapted plate shape
Fractures
- 5/4 hole / length 65 mm
- 5/6 hole / length 82 mm
- Width 10 mm
- Titanium

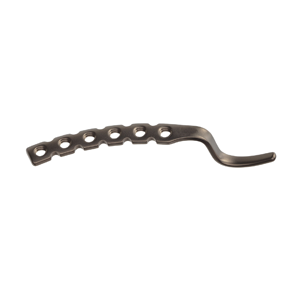

Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Elongated hole to align the plate
- Variable angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Undercut hole on the lateral plate margin for optional thread fixation
- Anatomical plate form
- Clasp direction anatomically adjusted
Fractures
- 2/2 hole / 2/3 hole / 2/6 hole
- Step height 14 mm or 18 mm
- Clasp length 16 mm
- Titanium

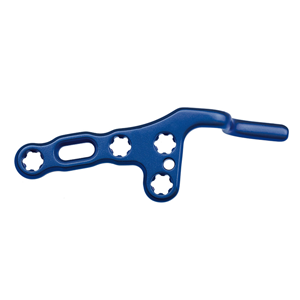

Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Variable angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Elongated hole facilitates alignment of the plate on the bone
- Anatomically adapted plate shape
- If the curvature of the angle-stable clavicle plate deviates from the individual anatomical form or if the plate is not centred, the variable angle-stable screw joint still provides options for treatment
Fractures
- 3/4 hole / length 65 mm
- 3/6 hole / length 82 mm
- Width 10 mm
- Titanium

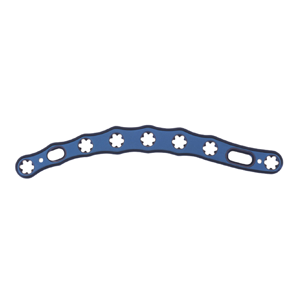

Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Uniform plate versions for left and right
- Anatomically shaped plate design
- Increased stability from titanium alloy
- Flattened ends of the plate make it easy to insert
- Anatomical form supports the anatomical reconstruction in pseudarthritis or revision surgery with longitudinal bone defects
Fractures
-
- 6 / 7 / 8 holes
- Length 80 mm / 91 mm / 103 mm
- Width 10 mm
- Titanium
- Surface: TiOB®
TiOB® is a trademark of Königsee Implantate GmbH, registered in the EU countries, in Switzerland and in the USA.
Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Uniform plate versions for left and right
- Anatomically shaped plate design
- Increased stability from titanium alloy
- Flattened ends of the plate make it easy to insert
- Anatomical form supports the anatomical reconstruction in pseudarthritis or revision surgery with longitudinal bone defects
Fractures
-
- 6 / 7 / 8 holes
- Length 80 mm / 91 mm / 103 mm
- Width 10 mm
- Titanium
- Surface: TiOB®
TiOB® is a trademark of Königsee Implantate GmbH, registered in the EU countries, in Switzerland and in the USA.
Advantages
- for tendon refixation
Fractures
- 4 hole / 5 hole / 6 hole
- Length 12 mm / 15 mm / 18 mm
- Titanium
Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Anatomically shaped plate design
- Dynamic compression hole for fracture compression
Fractures
- 6 / 8 / 10 holes
- Lengths 74 mm to 124 mm
- Width 12 mm
- Titanium
Advantages
- Combination holes enable the optional use of standard screws or fixed angle cortical screws with a diameter of 3.5 mm
- Angle-stable holes for secure fixation of the bone fragments
- Different plate versions for left and right
- Elongated hole facilitates alignment of the plate on the bone
- Anatomically adapted plate shape
Fractures
- 3/4 hole / length 65 mm
- 3/6 hole / length 82 mm
- Width 10 mm
- Titanium
The clavicle clasp plate 3.5 has plate holes for standard cortical screws 3.5 mm. The clasp direction is anatomically adjusted. The plate shaft is design in a reconstruction design.
Advantages
- The titanium screw ensures the best possible anchorage in the bone
- Large ruptures can be treated
- Stable anatomical fixation with high tear-out force
- High contact pressure of the tendon on the bone for the best possible healing outcomes
- Shorter postoperative immobilisation
- Low implant costs
- Cost-effective
- Lower revision rate than other implants
- Reconstruction design
Fractures
- Pinpoint to secure the sutures
- Threaded rod to anchor in the bone
- Thread-free screw neck to securely knot the cerclage sutures
- Flat head to avoid irritation
- With pin
- Ø 6.0 mm
- Available lengths: 30 mm / 35 mm / 40 mm
The clavicle clasp plate 3.5 has oval plate holes for standard cortical screws 3.5 mm. The clasp direction is anatomically adjusted. The plate shaft is design in a reconstruction design.
Advantages
- Curved
- Oval plate holes for standard cortical screws Ø 3.5 mm
- Different plate versions for left and right
- Anatomical plate form
- Clasp direction anatomically adjusted
- Reconstruction design
Fractures
- 4 holes and 6 holes
- Length 75 mm – 127 mm
- Width in the shaft 10 mm
- Titanium
The clavicle clasp plate reconstruction 3.5 has oval plate holes for standard cortical screws. The implant is available in a range of lengths. The reconstruction design allows convenient modelling on the bone.
Advantages
- Straight
- Oval plate holes for standard cortical screws Ø 3.5 mm
Fractures
- 4 holes / 6 holes
- Length 88 mm / 112 mm
- Width in the shaft 10 mm
- Titanium
Other designs
- Also available in steel
The straight clavicle clasp plate 3.5 is suitable for use with standard cortical screws.
Advantages
- Straight
- For standard cortical screws Ø 3.5 mm
Fractures
- 3 holes
- Length 82 mm
- Width in the shaft 10 mm
