FEMUR PLATE

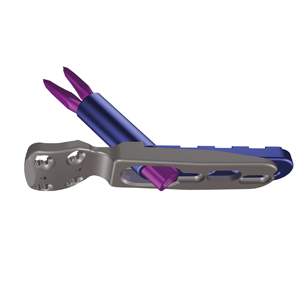

Osteosynthesis with RoSA makes it possible for the first time to combine the sliding principle, compression option and rotation locking in a compact multi-part support.
Surgical treatment of femoral neck fractures or trochanteric femoral fractures.
The objective of osteosynthesis with RoSA, the rotation stable screw anchor is the rotationally stable fixation of the femoral head/the head-neck fragment in femoral neck or trochanteric femoral fractures. RoSA makes it possible for the first time to combine the sliding principle, compression option and rotation locking in a compact multi-part support.
The RoSA combines in a single support, the benefits of the “blade”, such as high rotational stability (especially in osteoporotic bone) and the high load-bearing capacity with the benefits of the screw, such as tear-out resistance and the option of compression.
Advantages
- Angles in 7-degree increments (122°, 129°, 136° and 143°) mean that all CCD angles can be treated (from varus to valgus).
- The choice of implant depends on the individual CCD angle, the fracture reduction and the fracture line
- The angle of the sliding sleeve plate determines the direction of the post-operative slide path of the head-neck fragment fixed with the screw anchor.
- Consequently, in the case of a very steep fracture line (e.g. fracture type Pauwels III), a sliding sleeve with a more obtuse (“varus”) angle should be selected in order to prevent the head-neck fragment at the calcar from sliding away during the
post-operative phase (=loading). (The same obviously also applies to trochanteric fractures). - The shaft lengths with 1, 3 and 5 holes
- The shaft holes are combicompression holes with the following options for the use of cortical screws Ø 4.5 mm (large fragment): Standard screws (variable direction) without compression – Standard screws (approximately perpendicular to the shaft) with compression – Angle-stable screws with a threaded head (perpendicular to the plate) without compression – Angle-stable screws with a threaded head (perpendicular to the plate) with compression
Fractures
- 122° / 129 ° / 136° / 143°
- 1 hole / 3 hole / 5 hole

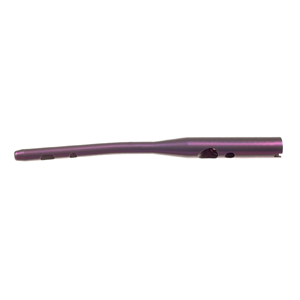

Advantages
- Nail in 210 mm length;
- Various diameters (10 mm – 13 mm)
- Various CCD angles (125° and 130°)
- Long nail variants
- Colour-coded instrument set for easier handling
- Special support screw design with controlled compression path of 15 mm, providing a high degree of primary stability
- Radiolucent light carbon fibre reinforced plastic insertion guide with modular technology
Fractures
- Titanium
- 125°
- Cannulated
- Internal Ø 4.7 mm
- Length 210 mm
- Ø 10 mm – Ø 13 mm
- Length 340 mm- 420 mm
- Ø 10.5 mm
- Different versions for left and right
- Colour coding of nail diameters:
- Ø 10 mm: anodised purple
- Ø 11 mm: anodised green-blue
- Ø 12 mm: anodised blue
- Ø 13 mm: anodised brown

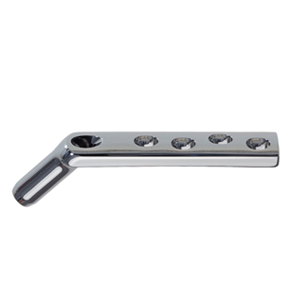

Advantages
- Cost effective procedure
- Gentle and established surgical technique
- Low intra- and postoperative complication rate
- Low blood loss as the medullary cavity is not opened
- Available in various angles
Fractures
- Steel
- 125°-150°
- Width 19 mm
- 2 – 14 holes
- 58 mm – 250 mm

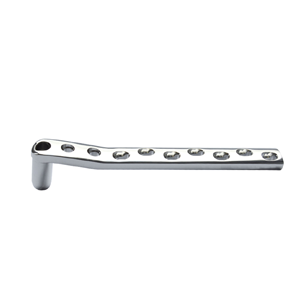

Fractures
- Steel
- Width 17 mm
- 6 – 18 holes
- 111 mm – 303 mm

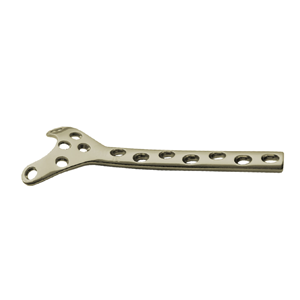

Fractures
- Steel
- For screws Ø 3.5 mm / Ø 4.0 mm
- 6 holes
- Width 22.5 mm
- 148 mm

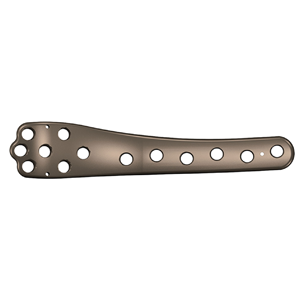

Advantages
- Anatomically adapted plate shape
- Different plate versions for left and right
- For screws Ø 4.5 mm / Ø 6.5 mm
Fractures
- Titanium
- Width 16 mm
- 7 – 13 holes
- Length 158 – 254 mm

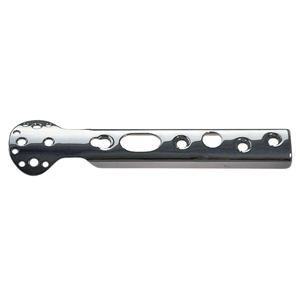

Advantages
- Anatomically adapted plate shape
- Different plate versions for left and right
- Angle-stable holes in the head for Ø 5.5 mm angle-stable cortical screws
- Angle-stable combination holes in the shaft enable the optional use of standard screws or fixed angle cortical screws with a diameter of 4.5 mm
- Fixation holes for Kirschner wires
Fractures
- Titanium
- Width 18 mm
- 4 – 16 holes
- Lengths 118 mm – 309 mm
- Plate thickness 4.5 mm / 6.0 mm
